Name: OPP and Paper Banding Machine Made In China BP02-30G Made In China Used For Notebook And Else straping
Brand: NINGBO BINPENG MACHINERY CO.,LTD
SKU: BP02-30G
Availability: InStock

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Função: Fita Opp ou faixa de papel artesanal

fita adesiva aplicável: papel e filme OPP

Material: 29-29,5 MM (largura) x 110-130 mic (espessura)

Tamanho do rolo: 40MM (diâmetro do núcleo) x500M (comprimento)

Tamanho do arco: 470 x 200 mm

Tamanho da embalagem: Máx. 450 x 200 Min. Mín. 40 x 40mm

Fonte de energia: 220V/50Hz

Sistema de controle: PCB

Velocidade de fixação:

Tensão de cintagem: 5-40N

Dimensão da máquina: 630*430*1225mm

Peso líquido: 70 kg

Método de soldagem: vedação de aquecimento

Informação básica

Lugar de origem: CHINA

Marca: Binpeng

Certificação: CE

Número do modelo: BP02-30G

Condições de Pagamento e Envio

Detalhes da embalagem: Caixa de madeira

Tempo de entrega: 5-10 dias

Termos de pagamento: T/T.

Habilidade da fonte: 30 conjuntos por mês

Galeria

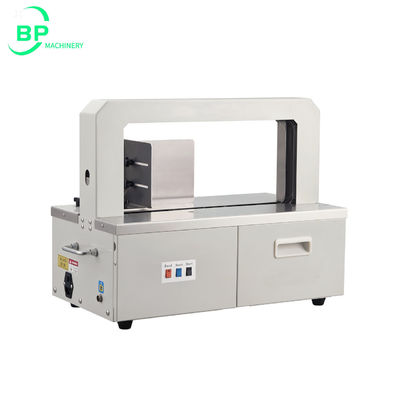

OPP and Paper Banding Machine Made In China BP02-30G Made In China Used For Notebook And Else straping

Descrição de produto

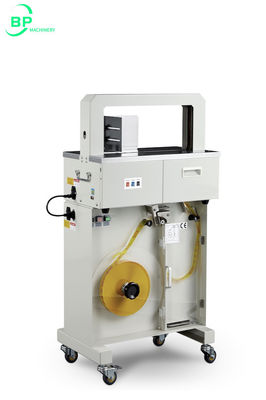

OPP And Paper Banding Machine Made In China BP02-30G Made In China Used For Notebook And Else Straping

OPP and Paper Banding Machine Made In China BP02-30G Made In China Used For Notebook And Else straping 0

Paper banding machine, also known as strapping machine , uses strapping tape to bundle products or packages, and then tightens them and combines the two ends with hot-melt bonding using a heating iron. The function of the baler is to reinforce the packaged items so that the items will not be scattered due to weak bundling during transportation and storage. At the same time, they should be bundled neatly and beautifully.

Applicable to many fields, such as food, printing, medical, fresh vegetables and other fields

Technical date

Model No	BK02-30G	BK02-30GB(BK02-30G+DZ02-30)
Applicable tape	paper & OPP film or OPP	paper & OPP film or OPP
Material 材料宽*厚	29-29.5MM(width) x 110-130mic (thickness)	29-29.5MM(width) x 110-130mic (thickness)
Roller size	40MM (core diameter) x150M(length)	40MM (core diameter) x500M(length)
Arch size	470 x 200mm	470 x 200mm
Strap size	Max 450 x 200 Min 40 x 40mm	Max 450 x 200 Min 40 x 40mm
Power supply	220V/50HZ	220V/50HZ
Control system	PCB	PCB
Strapping speed	</= 2.2seconds	</= 2.2seconds
Strapping tension	5-40N	5-40N
Machine dimension	630 x 364 x 474mm	6304301225mm
Net weight	32kg	72KG
Welding method	Heating sealing 瞬间热熔	Heating sealing

Advantages :

29mm band application for narrow products
No Pre-Heating time
Heat Sealing with display of heater temperature
With counter
Applicable for both paper band and OPP film

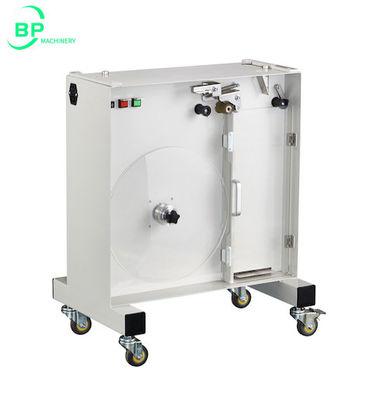

Can connect to a jumbo roller dispenser to load 500-800 meters roll

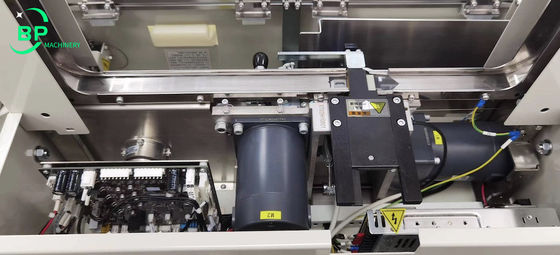

DC motor Power-Instant heating

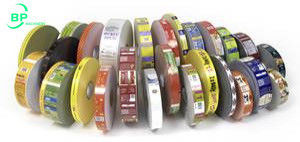

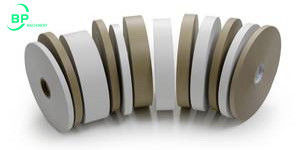

Banding material (OPP printed film) Banding material ( One side plastic coated Paper )

Machine suitable for below packing and differ filed .
