Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine

1 conjunto
MOQ
Negotiate (more quantity more cheap )
preço
Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Tipo: Máquina de embalagem
Doença:: Novo
Material cinematográfico: Filme PE ou filme POF
Velocidade: máx. 70 unidades/minuto
Compressão do ar: 5,5-8,5kg/cm³
Peso: 650kg +650kg
Localização do showroom: Canadá, Turquia, Estados Unidos, França, Alemanha, Brasil, Peru, Arábia Saudita
Tipo de embalagem: Caixas, filme, caixa, máquina de embalagem retrátil
Grau automático: Automático
Tensão: 220V/380V 50-60Hz trifásico
Serviço pós-venda prestado: Peças sobresselentes, a instalação do campo, comissão e treinamento, manutenção de campo e serviço d
Principais pontos de venda: Automático de alta velocidade
Componentes principais: PLC, motor, tela de controle de toque
Informação básica
Lugar de origem: CHINA
Marca: BP MACHINERY
Certificação: CE certification
Número do modelo: GPL 5545H +GPS 5030LW
Condições de Pagamento e Envio
Detalhes da embalagem: Estojo de madeira
Tempo de entrega: 30 dias
Termos de pagamento: T/T, L/C, Western Union
Habilidade da fonte: 20 conjuntos / mês
Descrição de produto

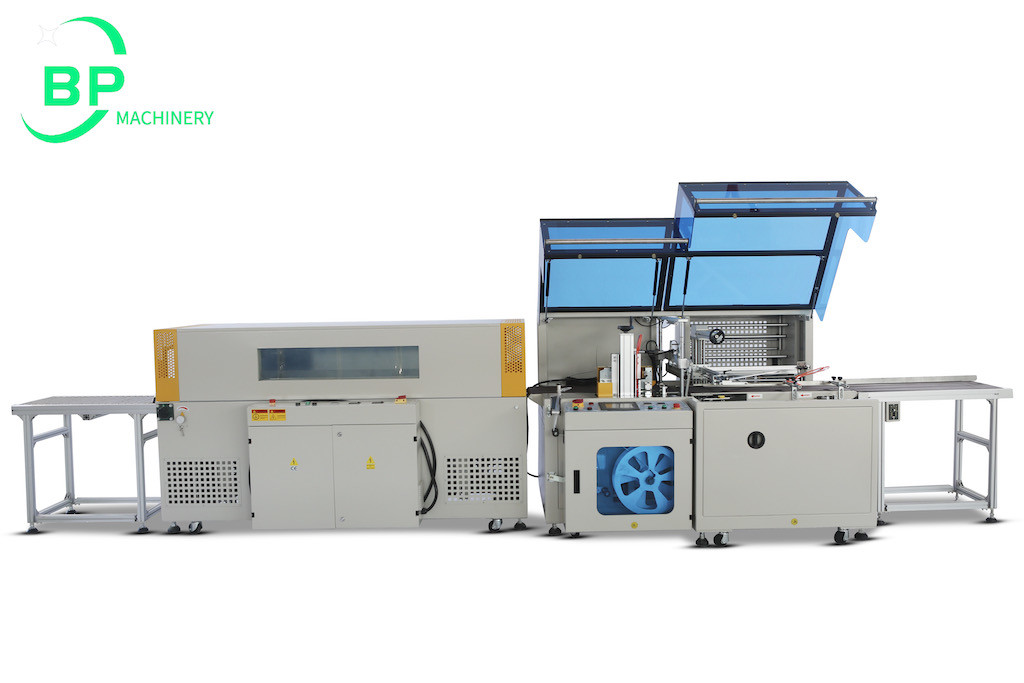

Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine   GPL-5545HI + GPS - 5030LW

Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 0


Description :

Ningbo BingPeng Machinery provide very stable and quality wrapping machine and it already be sold to many countries and used well in China market also .

Automatic high-speed edge sealing and shrinking wrapping machine is used for automatic online high-speed shrink packaging of products. It uses optoelectronics to automatically detect products. The packaging capacity is max 70 bags/min, which is suitable for packaging various types of products of different sizes and shapes. The machine uses a touch screen to control the machine, and the adjustment is also convenient and simple. At the same time, it can store a variety of product packaging data, which can be directly transferred from the system during use. It is convenient and quick, and greatly shortens the time required for replacing the packaged product.






FEATURES

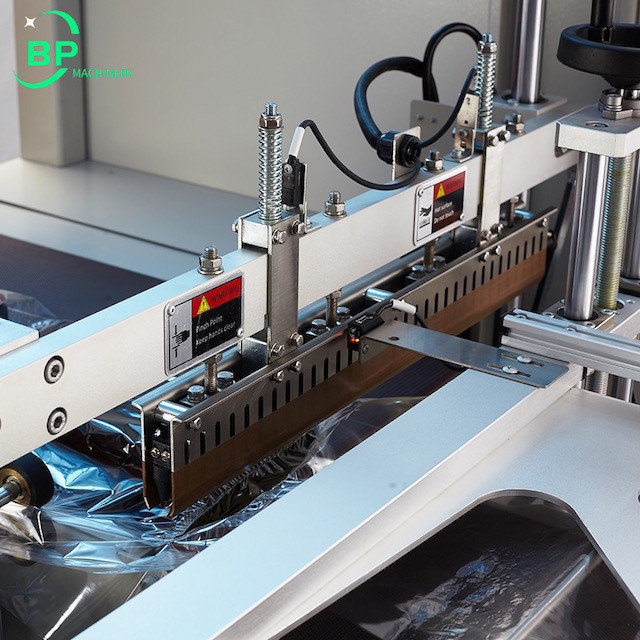

  • The edge sealing and shrinking machine adopts imported components to ensure the high-speed running stability of the machine. And the imported servo motor controls the sealing cutter, it ensures the sealing precision and the firming of the sealing line.
  • The shrinking machine adopts the edge-sealing design, the packaging length is unlimited. It can store the product packaging parameters in the system.
  • Fault alarm and display function; the machine has a wide packaging range and can package products of different sizes and shapes.

Technical data :

GPL-5545HI

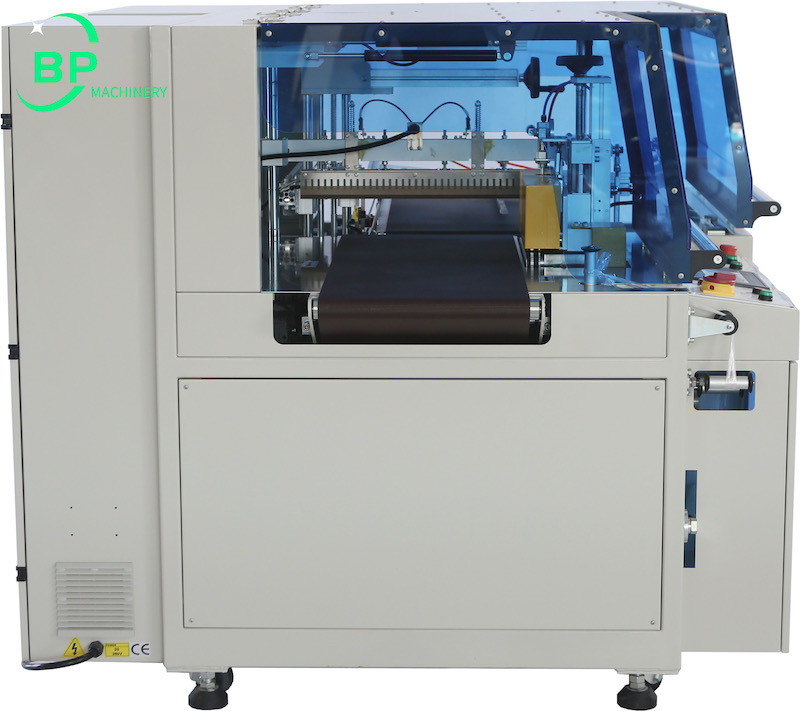

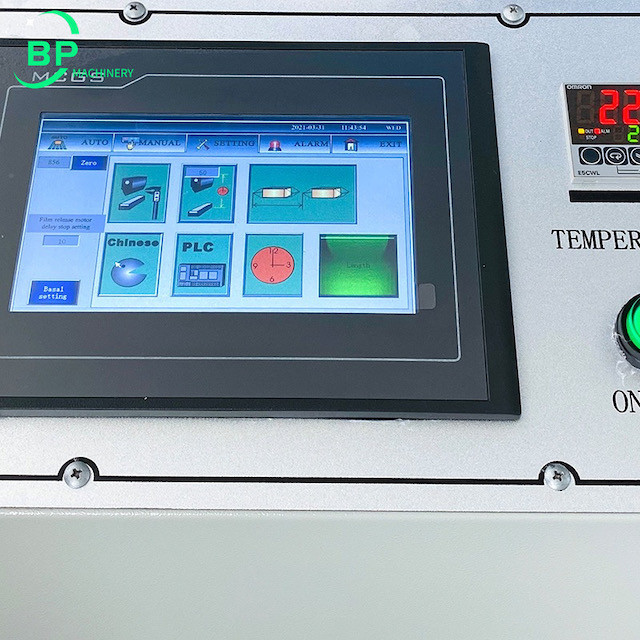

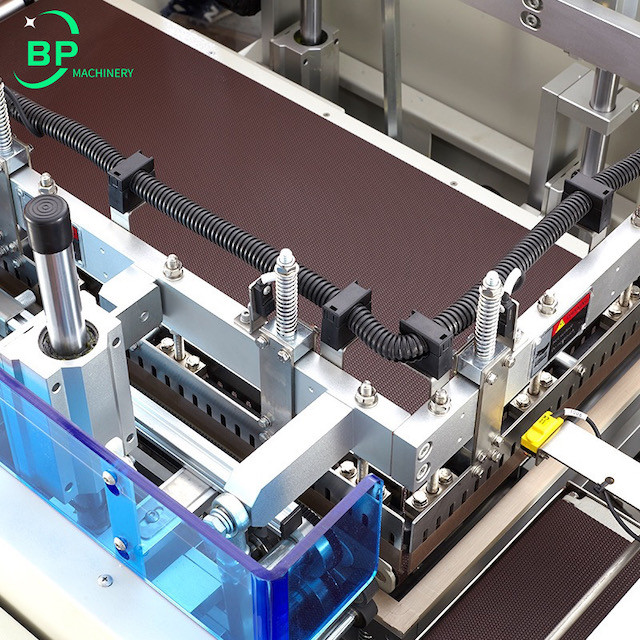

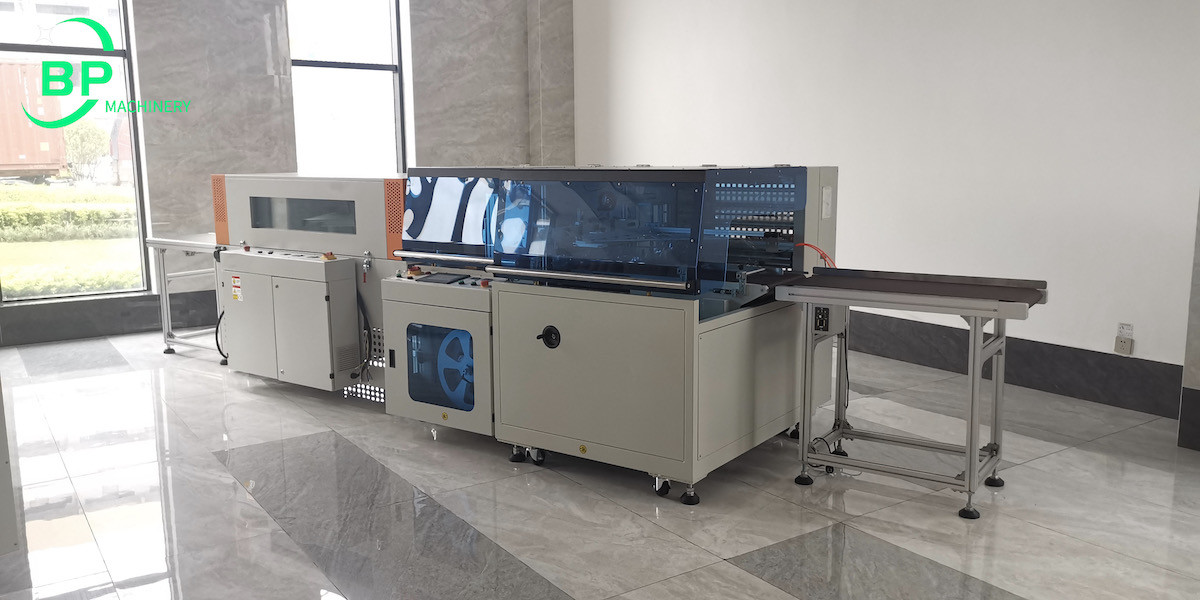

Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 1Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 2Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 3Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 4



GPS - 5030LW

Pof Film Shrinking Packing Heat Wrapping Type Thermo Shrink Tunnel

Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 5Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 6Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 7Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 8

Pof Film Shrinking Packing Heat Wrapping Type Thermo Shrink Tunnel is the optimal shrink film applicator for infinite length products. A heated arm is raised and lowered as products pass underneath. Shrink film is then heated and sealed around the product.

  • Customized Shrink Tunnel Length
  • High-Temperature Resistance and Stickness Proof
  • Up to 85 pcs/min
  • Overseas After-sales Service Available
  • Stainless Steel Heating Tube









Type GPL-5545HI GPS-5030LW

Film

POF POF

Packing Speed

20-70pcs/min 20~80pcs/min

Packing Size

W+H≦450mm,H≦170mm,L≥100mm W≦400×H≦250mm,W+H≤480mm

Cutter size / Tunnel size

490mm L1500×W500×H300mm

Max Temperature

280°C 200°C

Electrical

220V/380V 50-60Hz 3 Phase 220V/380V 50-60Hz 3 Phase

Power

3.5KW 16KW

Max Current

6.5A 25A

Air Compressing

5.5-8.5kg/cm³

Table Height

850+30mm 850+30mm

Machine Size

L1825*W1515*H1350mm L1850×W1095×H1325mm

Machine Weight

450 kg 650kg




Samples pictures :

Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 9Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 10Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 11Fully Automatic edge sealer and Pof Heat Shrink Film Packing And Wrapping Machine 12





Details please contact

Ningbo BingPeng Machinery Co.,Ltd

Address : A812 No 2 Xingye Avenue, Free Trade Zone, 315800,Ningbo,China

Contact person :Oliver Ye

Email : prbpmachine@gmail.com

Whatsapp : +8615924348623

Wechat :bpmachinery999

Skype :+8615924348623

Website : www.bp-machine.com

Facebook: https://www.facebook.com/profile.php?id=100075000751709

Youtube : https://www.youtube.com/channel/UCdq8kar6-zAMwGwZhSlrSsw
