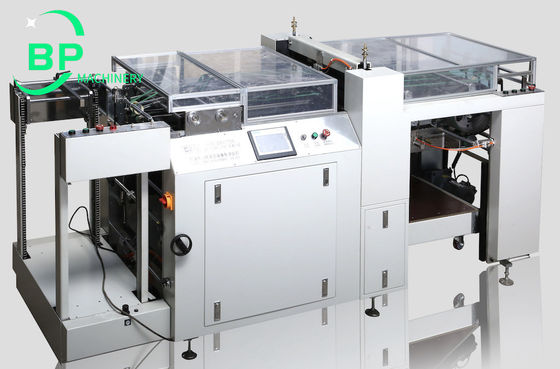

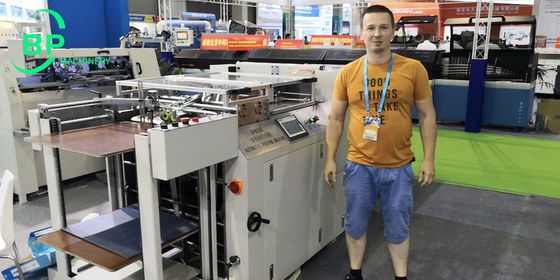

China automatic calendar ,paper, cover ,pp sheet hole punching machine APM550
Ningbo BingPeng Machinery Co.,Ltd is one of leading machines supplier and manufacture in binding and packing area ,APM420 automatic hole punching machine is used for wire o notebook ,twin loop ring calendar ,spiral sketch book ,plastic spiral book ,pp sheets ,Hardcover and cardboard hole perforating and punching machine .
Wide range punch functon,with 1 machine could do most hole punching jobs , Will be your good helper in wire o,double wire,twin ring wire,double o,spiral wire productions' produce.
Technical data :
| Max.sheet |
550mm x600 mm |
| Min.sheet |
120mm x 100 mm |
| Max punching thickness |
3mm |
| Weight of paper |
60 - 350 gsm |
| Punching speed |
Up to 7200 punch times /hour |
| The max height of paper feeder |
500mm |
| Power |
3PH 380V 50HZ(other voltage on request) |
| Main motor power |
3KW |
| Dimension |
2.2 m x 1.3 m x 1.2 m |
| Net weight |
1600KG |
Advantages :
1 .Machine can do pp sheets ,hard cover,card board,loose leaf ,calendar hole perforating which is important for double wire ,wire o,twin ring o producitons and spiral productions .
2. High quality for punching without deckle edge and accurate punching position.
3. 550 size make it possible to finished from notebook ,desk calendar ,calendar ,is perfect for some print house do calendar also with notebook jobs .
4.Simens touch screen and good brand electrial parts ,make this machine more advanced and stable .
Machine structure :

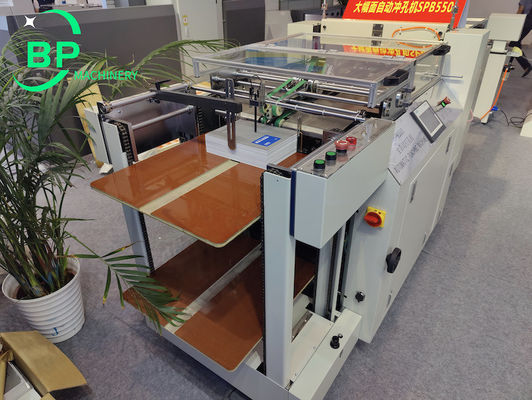

Automatic wire o calendar spiral notebook punching machine Feeding part
(Cardboard ,pp sheets ,hard cover feeding use Suction Nozzle)
(Paper ,loose leaf hole punching we use feeding pusher part to feeding paper )

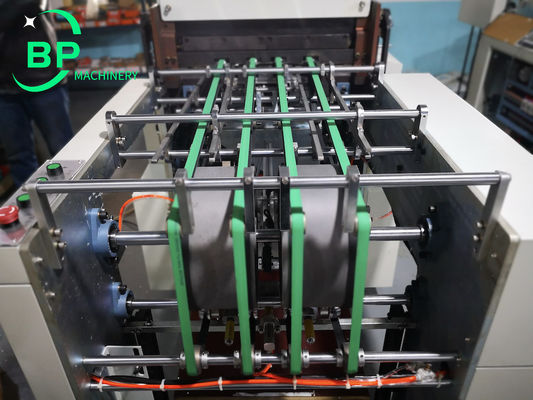

Paper pressed by belt deliver to Punching part Punching part with Oil lubrication system
Paper after punched with rolling and belt deliver paper collect part
Papaer collect deliver system when punched seted numbers will push stack finished paper out ,make it possible no stop by one worker operator

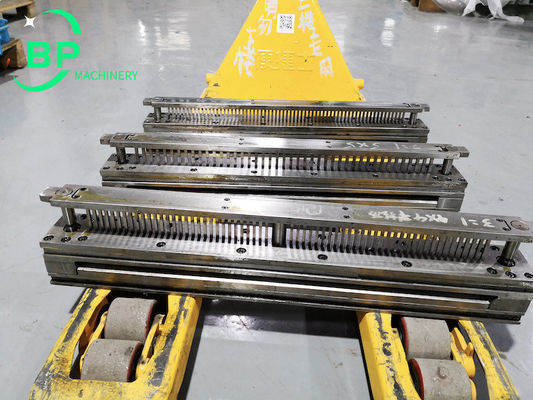

Punching machine punching die
Wire o calendar notebook ,spiral notebook hole size choose
| Hole size |
Appearance |
punch tool choose |
| 3:1 |
Square 4x4 or Round 4.5mm |
3:1 ,Square 4x4 or 5x5 or round 4.5mm |
| 3:1 |
Thumb cutting square 4x4 |
3:1 ,thumb cut square 4x4 or 5x5 |
| 2:1 |
Square 5x5 or 6x6 |
3:1 ,Square 5x5 or 6x6 |
| 2:1 |
Round hole 6mm |
2:1 ,round hole 6mm |
| 3:1 |
Oval : 4x3 |
3:1 ,Oval 4x3 |
(Many size punching tool could be choose )
3:1 pitch ,Square or round hole
2:1 pitch ,Square or round hole Optional choose
Or we aceept customer provide Holes size OEM.
Details depend your productions .

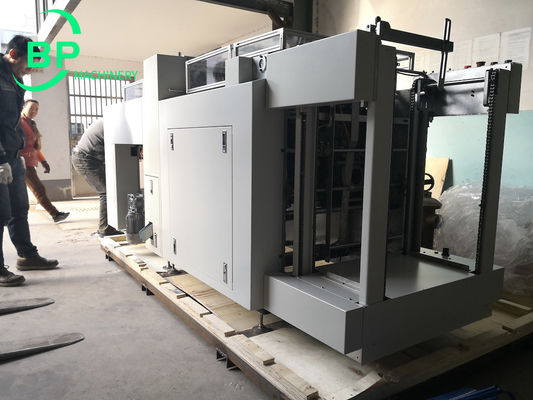

Machines packing and deliver to customer
If you are find machine only do notebook ,you can check our other type 320 and 420 model .
APM420 automatic wire o ,spiral notebook paper pp sheets cardboard punching machine (press link to APM420)
