Características

Especificações

Tipo: Máquina de contador de papel

Espessura do papel: 22-230 g/m² (papel carbono, papel para impressão offset, papel revestido, etc.)

Papel máximo: 600x600 mm

Papel mínimo: 100x150mm

Motor: 0,4kW

Fonte de energia: AC220±10V, 50Hz

Altura de empilhamento: 300 mm (máx.)

Largura da mesa de alimentação: 600x600

Altura da mesa de alimentação: 760mm

Tamanho da máquina: L 900 mm, C 1080 mm, A 1500 mm

Poder consumido: 600W

Etiqueta para papel em pilha: largura 6mm, comprimento 100m

Peso da máquina: 230 kg

Garantia: 13 meses após o dia da navegação

Após serviços de vendas: Treinamento em vídeo, peças sobressalentes substituídas, todas aceitas

Informação básica

Lugar de origem: CHINA

Marca: BP MACHINERY

Certificação: CE

Número do modelo: SZJ

Condições de Pagamento e Envio

Detalhes da embalagem: Uma caixa de madeira

Tempo de entrega: 5-20 dias

Termos de pagamento: T/T, L/C, Western Union

Habilidade da fonte: 20 conjuntos por mês

Galeria

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen

Descrição de produto

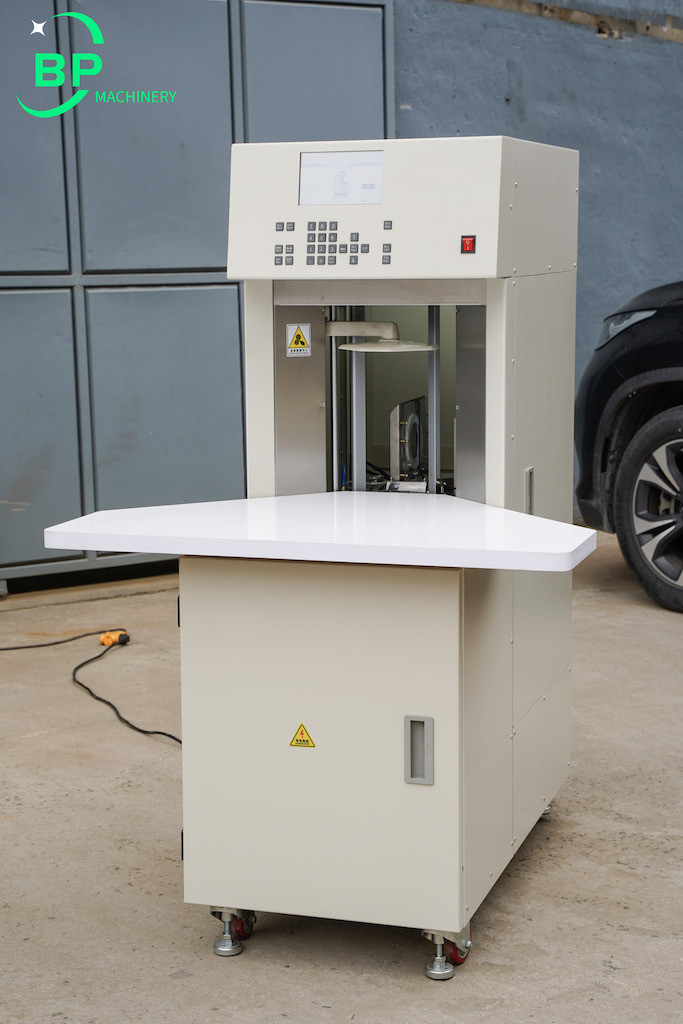

Paper sheet counting machine BPSZJ

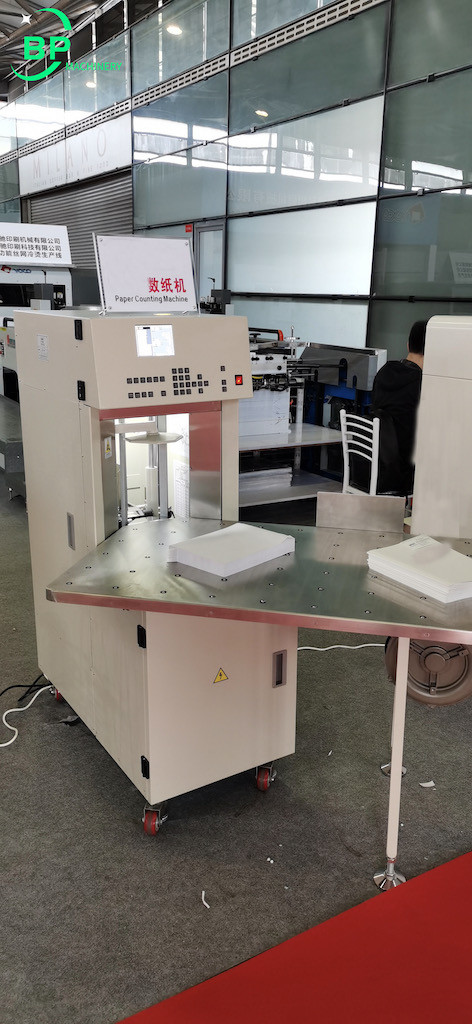

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen 0

Description :

BPSZJ is the one of BP Machinery for paper counter ,already 20 years manufacutre experience in China market .It already be popular machine to counting paper and good tested in China factory .

The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. With superior performance,it has a 7 inches color screen computer, intuitive and simple user-machine interface and adopts imported servo motor control the main motor.
Any kind and any thickness of paper within the parameter range can be precise and high-speed counting. Special paper depending on the actual situation.
The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper. It can edit and save 99 program groups, each program group can edit a different number of papers;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile.
Auto-diagnostic function.The operator can know .from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
It has a paper label fast changing structure.

Technical data :

paper thickness range	22～230g/m²(Carbon paper,offset printing paper, coated paper,etc.)
paper size	Min.100X150mm,Max 600X600mm
Paper stacking height	300mm max
Power Supply/voltage	AC220±10V,50Hz
Motor	0.4KW
Feeding table width	600x600 mm
Feeding table height	760mm
Machine size	900(W)X1080(L)X1500(H)
Machine weight	230KG
label for paper in pile	Width 6mm,Length 100m
Consumed Power	600kw

Features of High speed automatic paper sheet counter machine

1. Adopt servo motor control, 7-inch color screen

2. Can works with any types paper such as carbon paper, offset paper, coated paper, art paper, post cards, copy paper etc, high counting speed. It can mix counting different thickness of paper simultaneously.

3. It has random paper label insert function.

4. It has paper quantity detection function between preset quantity and finished quantity. The specified number counting function is for sorting out the required number of paper from paper pile.

5. The machine has auto-diagnostic function. Any error will display in the screen.

6. It has paper label fast changing structure.

Machine electrical configuration list

America ARM Core CPU Frequency:400MHZ

SDRAM:SAMSUNG DDR2,64MB

FLASH ROM:SAMSUNG 64MB

Listepping moto china

TFT:Foxconn 7 Inch

KEYPAD:OMRON

Paper Count Motor:FUJI Servo Motor

Air Pump Motor:chinakorea

IF Sensor:OMRON

Hall Sensor:OMRON

Switch Power:Taiwan Meanwell

Cable:America TE

Machines structure parts picture

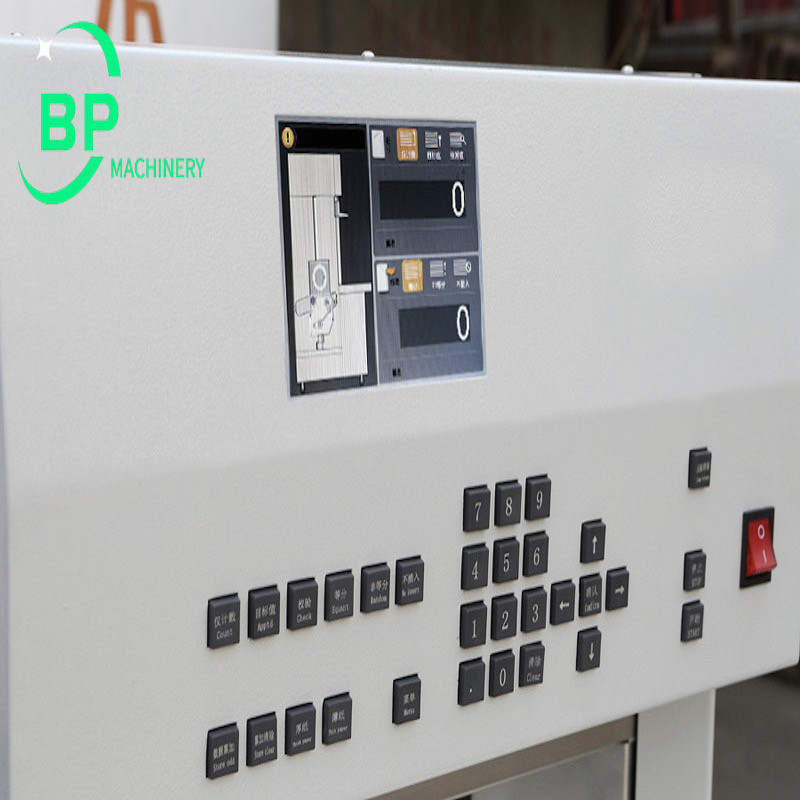

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen 1 (The structure of computer system and operation panel)

(Front structure of the label cutting unit)

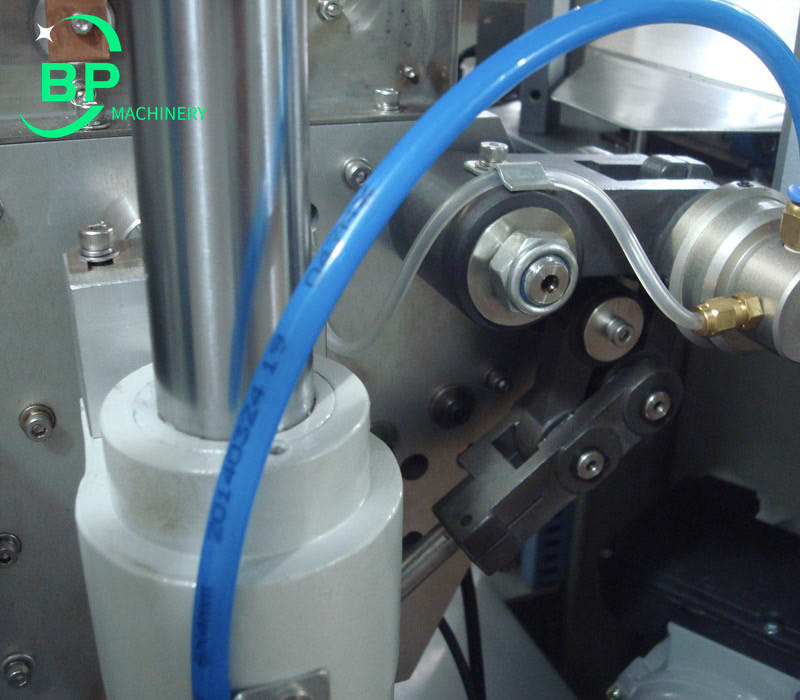

(Side structure of the paper sucking unit)

(Side view of the Japan Fuji motor unit)

(Using Omron limit sensor)

(Using Japanese original NSK bearing)

Japan Orion vacuum pump (Optional)

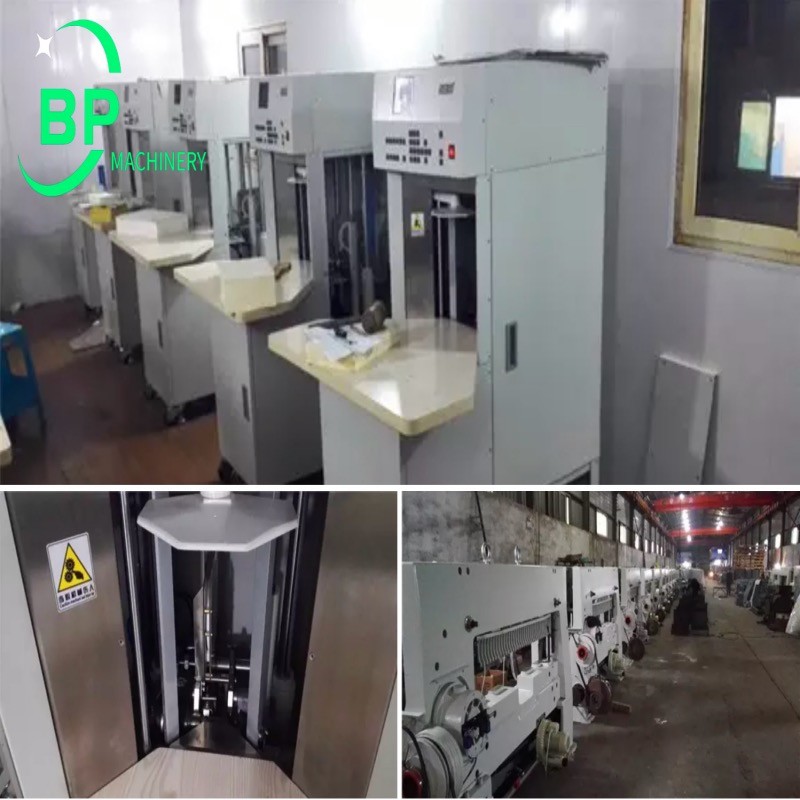

Appliacation picture:

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen 8
